F02 Series / Model views
LY430-F02 3IN1

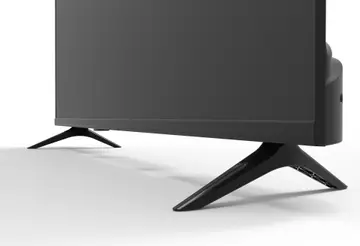

Matte V-style feet
Explore the supplied views of this 3IN1 configuration. Use the available angles and details to discuss structure and fit with our team.

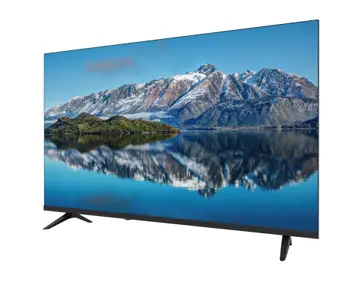

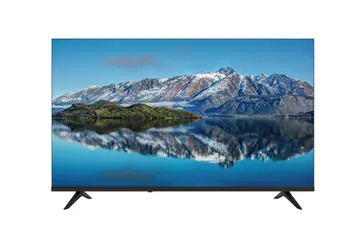

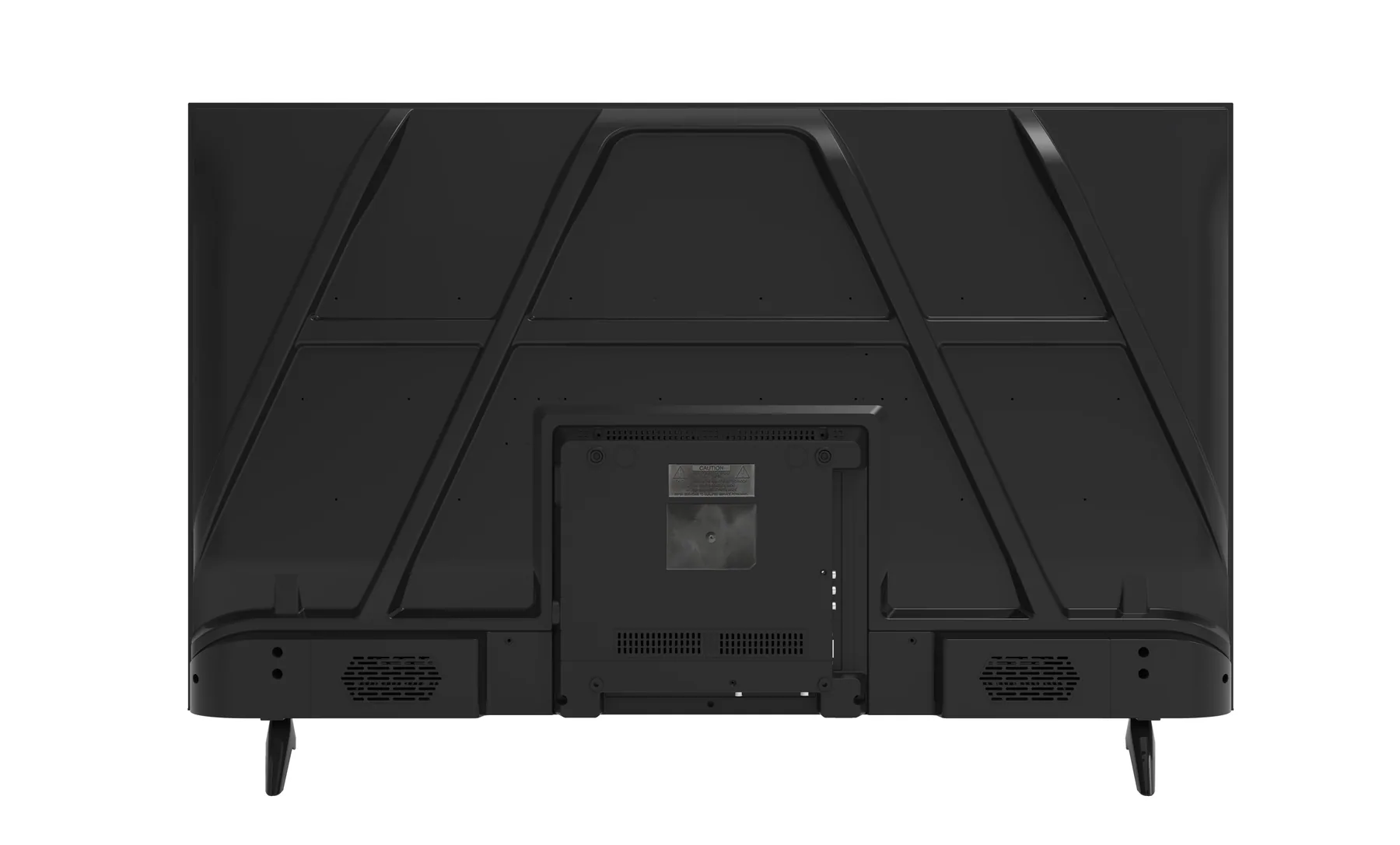

These supplied visual renderings show an assembled TV configuration. They are visual references for this named variant, not standalone photographs of a bare SGCC metal back plate. Final structure, material and dimensions require drawing-based confirmation.
- Model reference
- LY430-F02 3IN1
- Configuration
- 3IN1
- Variant / reference
- Matte V-style feet

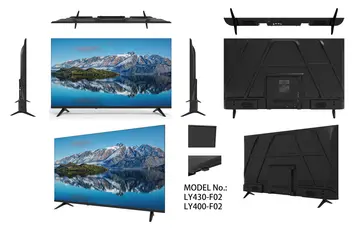

- Supplied views
- 5
Engineering confirmation
Match the visual reference to your drawing.
This page does not assign a model-specific SGCC thickness or dimensional specification from imagery alone. Send the approved drawing or target requirements so our team can confirm the exact back-plate construction.
Match LY430-F02 3IN1 to your program.
Share your target size, structural drawing or sample requirement for an exact model and material review.
