F02 Series / Model views
LY980-F02 / LY1000-F02

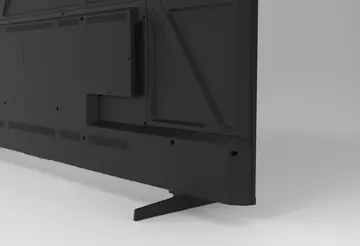

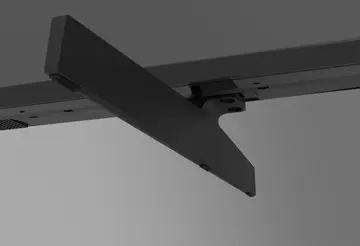

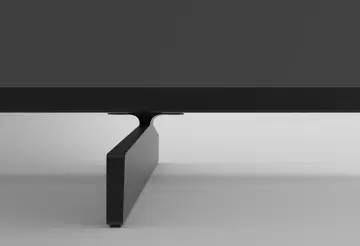

V-style feet shown
Explore the supplied views of this Shared appearance reference configuration. Use the available angles and details to discuss structure and fit with our team.

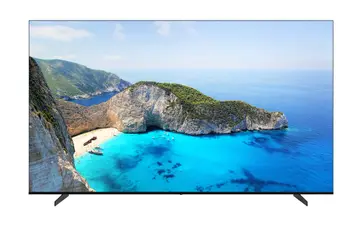

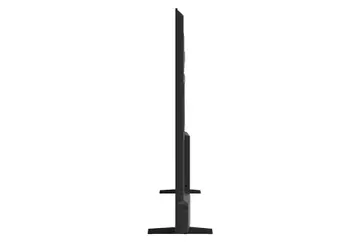

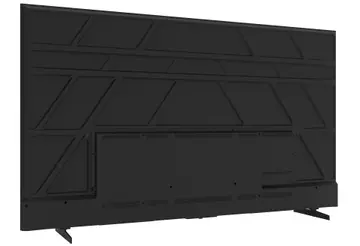

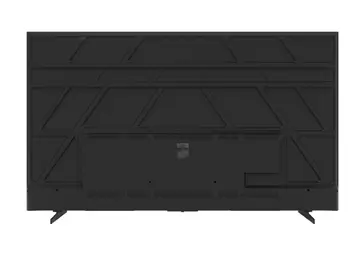

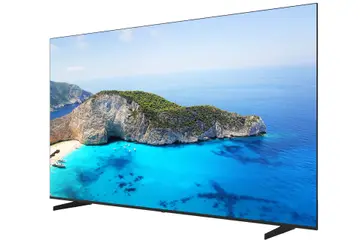

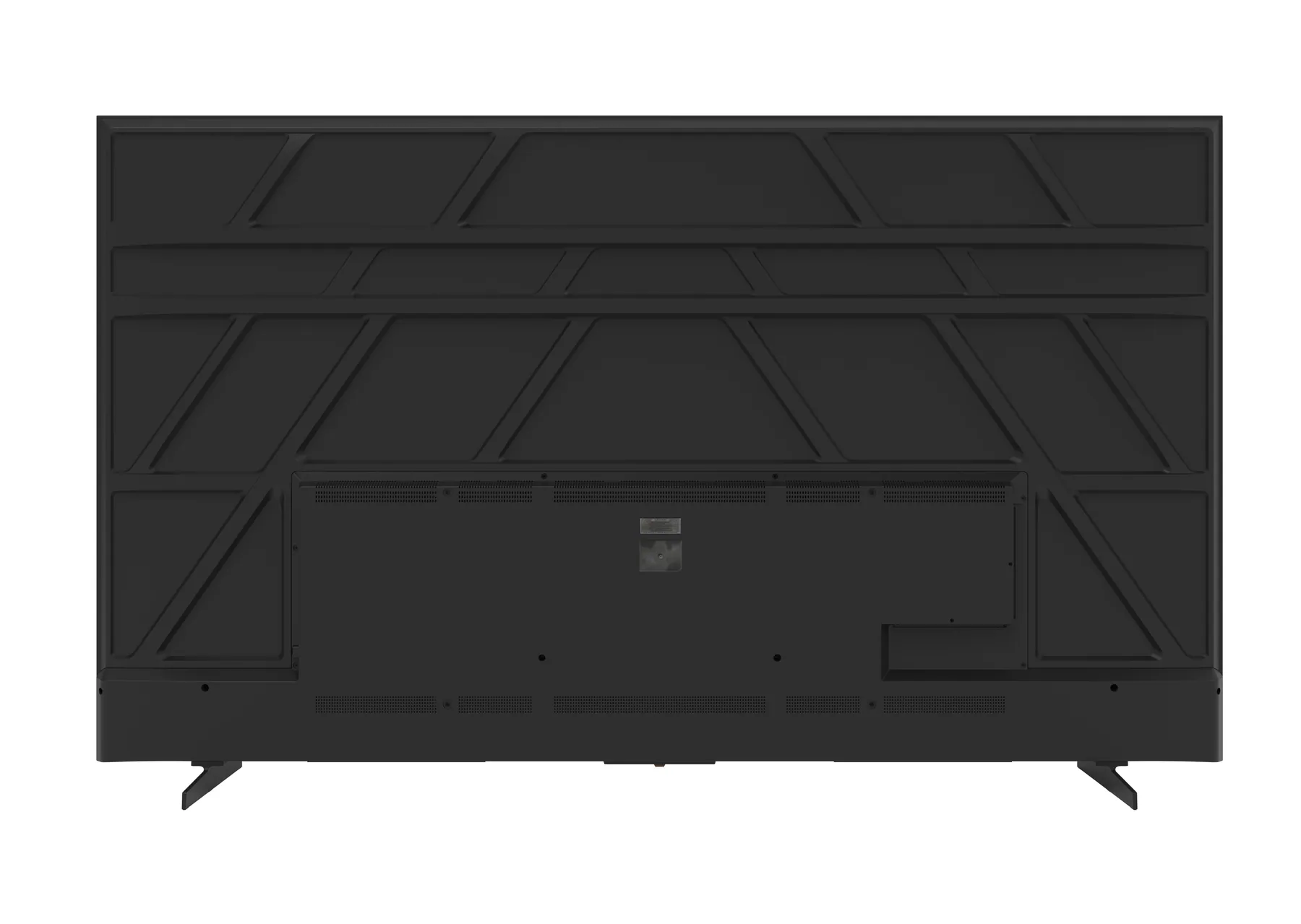

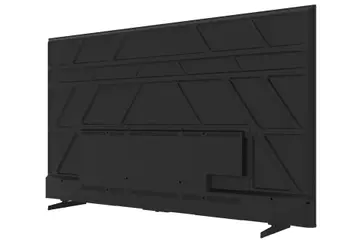

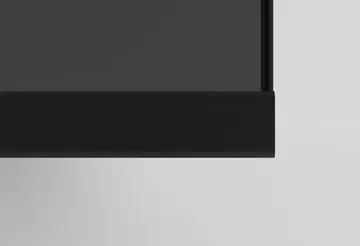

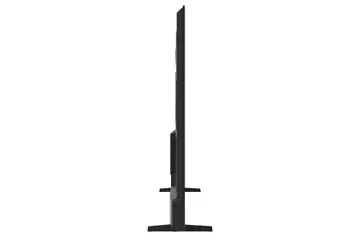

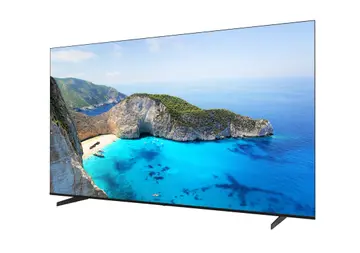

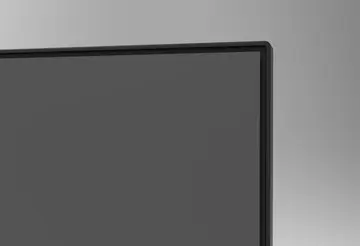

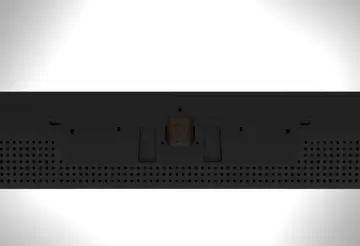

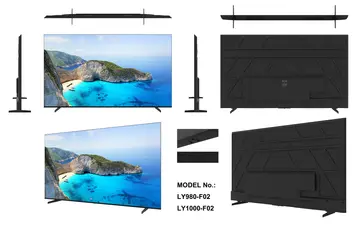

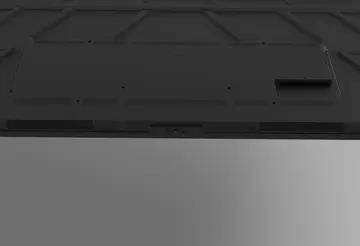

These supplied visual renderings show an assembled TV configuration. They are visual references for this named variant, not standalone photographs of a bare SGCC metal back plate. Final structure, material and dimensions require drawing-based confirmation. The source folder states that LY980-F02 and LY1000-F02 have the same appearance but different metal-back-plate lengths. These are shared visual references, not independently verified LY1000 photographs or proof of interchangeable dimensions.
- Model reference
- LY980-F02 / LY1000-F02
- Configuration
- Shared appearance reference
- Variant / reference
- V-style feet shown
- Supplied views
- 17
Engineering confirmation
Match the visual reference to your drawing.
This page does not assign a model-specific SGCC thickness or dimensional specification from imagery alone. Send the approved drawing or target requirements so our team can confirm the exact back-plate construction.
Match LY980-F02 / LY1000-F02 to your program.
Share your target size, structural drawing or sample requirement for an exact model and material review.
