F01 55/65/75/85 Series / Technical drawing
550F01 3IN1

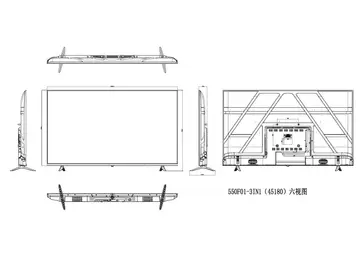

Standard six-view drawing
Inspect the supplied six-view technical drawing for this named configuration. Confirm the current revision and project-specific details with our team.
This is a supplied technical drawing sheet, not a product photograph or a standalone bare SGCC back-plate image. Drawing revision, structure, material and dimensions require direct confirmation.
- Model reference
- 550F01 3IN1
- Configuration
- 3IN1
- Variant / reference
- Standard six-view drawing
- Supplied sheets
- 1
Engineering confirmation
Match the visual reference to your drawing.
This page does not assign a model-specific SGCC thickness or dimensional specification from imagery alone. Send the approved drawing or target requirements so our team can confirm the exact back-plate construction.
Match 550F01 3IN1 to your program.
Share your target size, structural drawing or sample requirement for an exact model and material review.
