TV Metal Back Plates / F01 55/65/75/85 Series
F01 55/65/75/85 Series
Large-format F01 back plate references. Explore the supplied 550/650/750 six-view technical drawings and LY750/LY850 assembled-TV visual variants below. Confirm the exact size and drawing for project-specific fit or process claims.
Family references: F01 / F01YT large-format family
The supplied assembled-TV images are visual references for the named variants, not isolated photographs of the bare SGCC back plate. Six-view sheets, where shown, are technical drawings rather than product photographs.
Individual model references
Explore a specific F01 55/65/75/85 Series configuration.
Choose the named variant to inspect its supplied views or technical sheet before matching it to your drawing.
Six-view Technical Drawing
550F01 3IN1 · Standard six-view drawing
Explore model views →
Speaker Variant · Six-view Technical Drawing

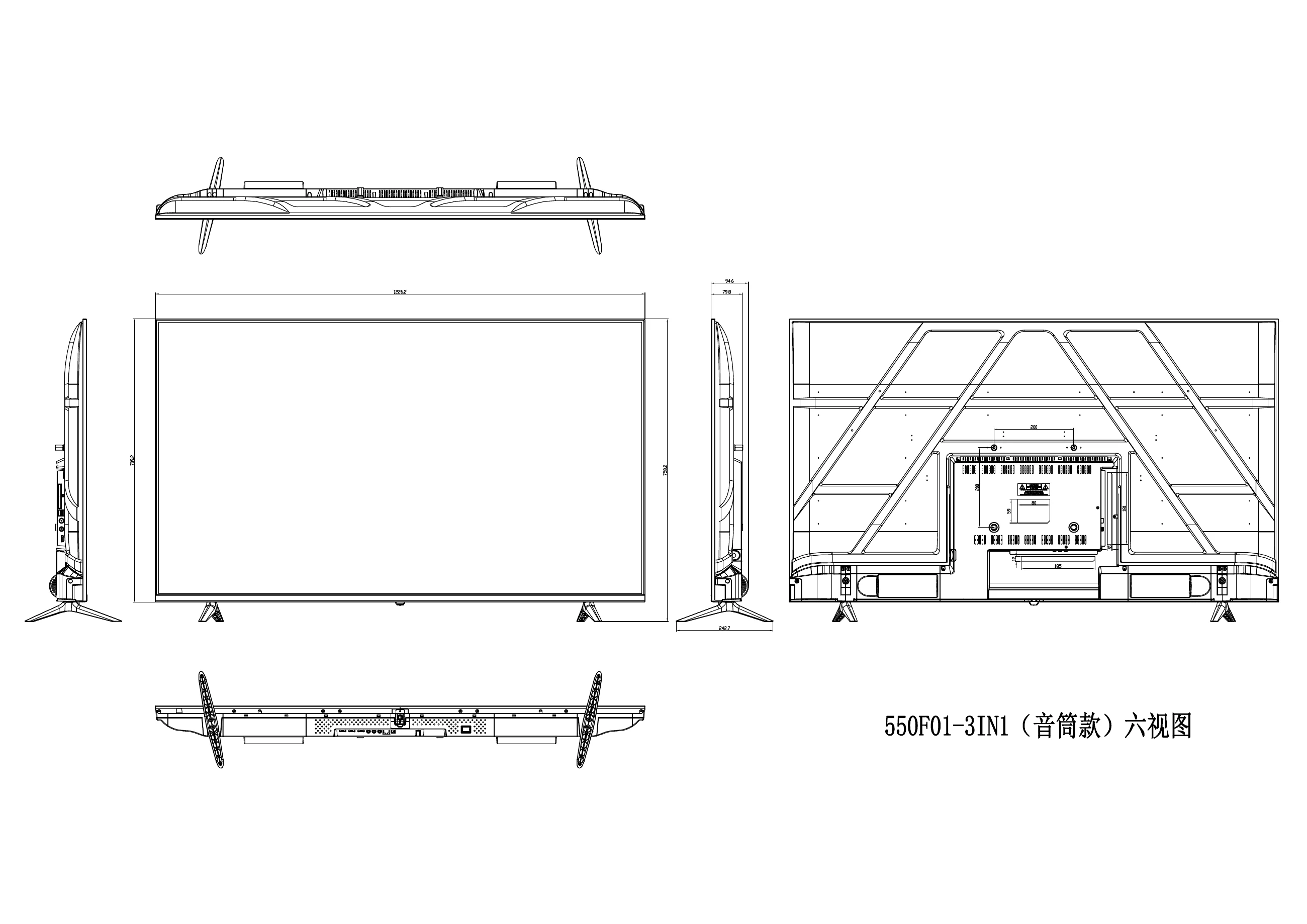

550F01 3IN1 · Speaker Variant · Speaker-variant six-view drawing
Explore model views →
Six-view Technical Drawing

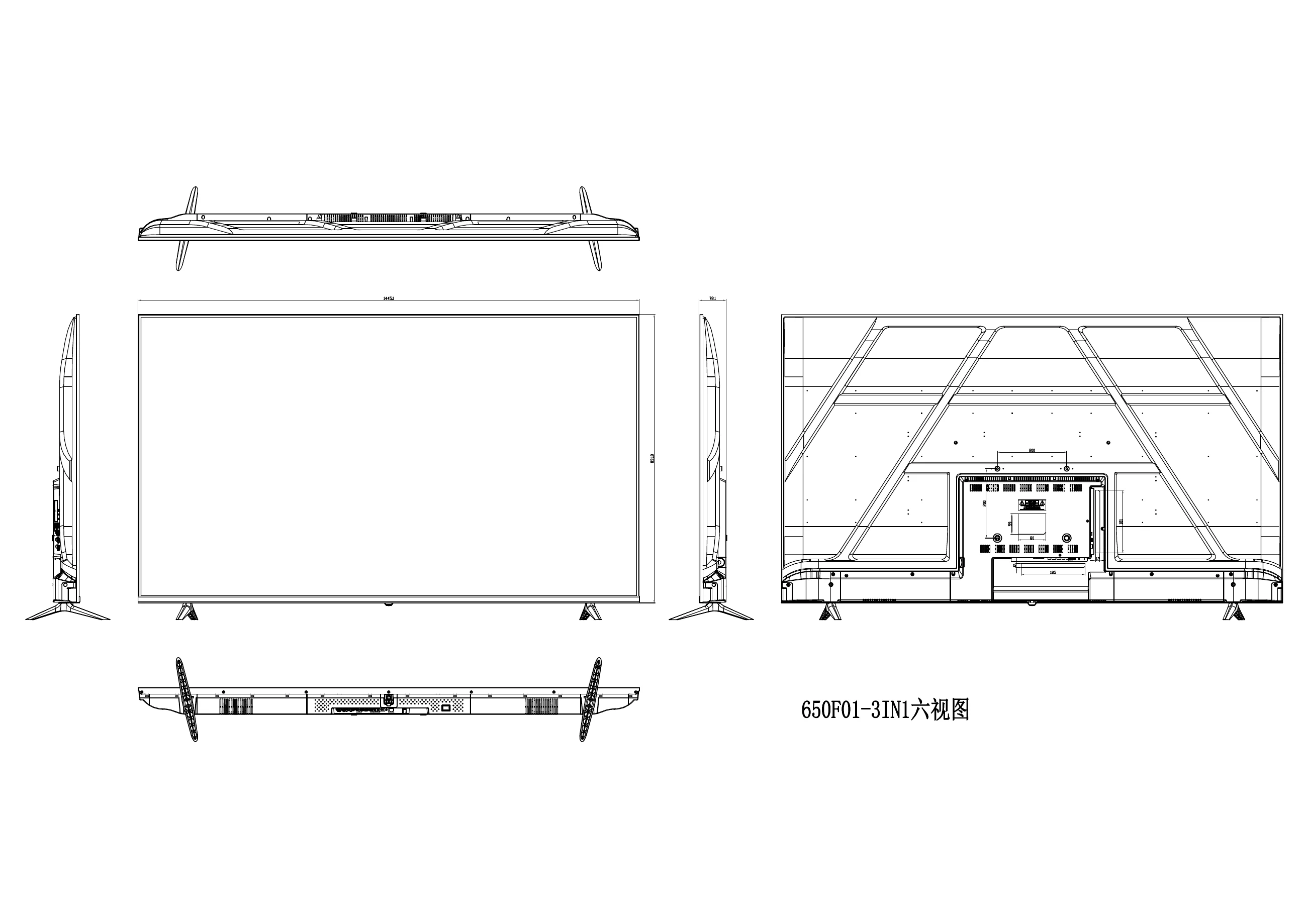

650F01 3IN1 · Standard six-view drawing
Explore model views →
Speaker Variant · Six-view Technical Drawing

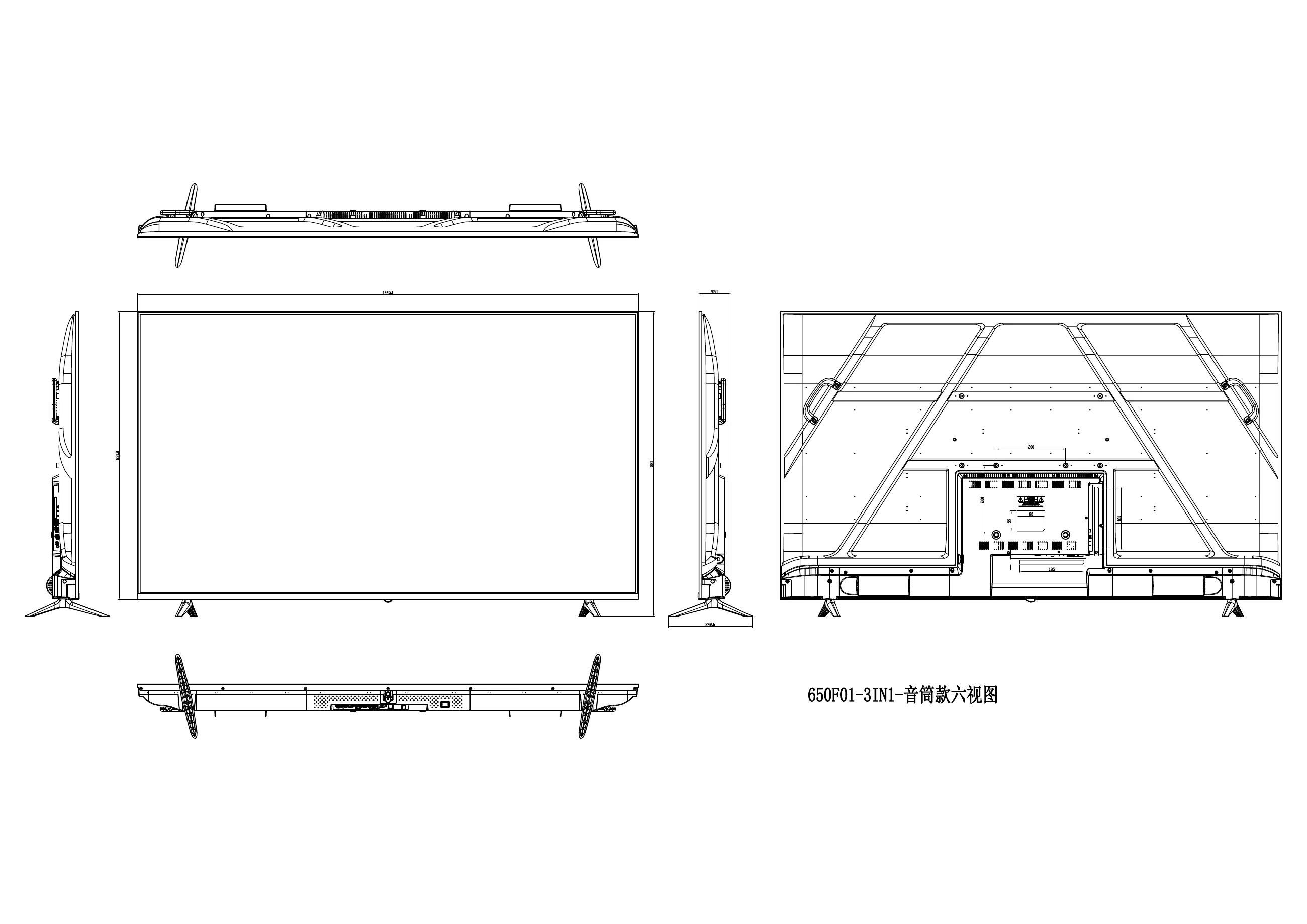

650F01 3IN1 · Speaker Variant · Speaker-variant six-view drawing
Explore model views →
Plastic Variant · Six-view Technical Drawing

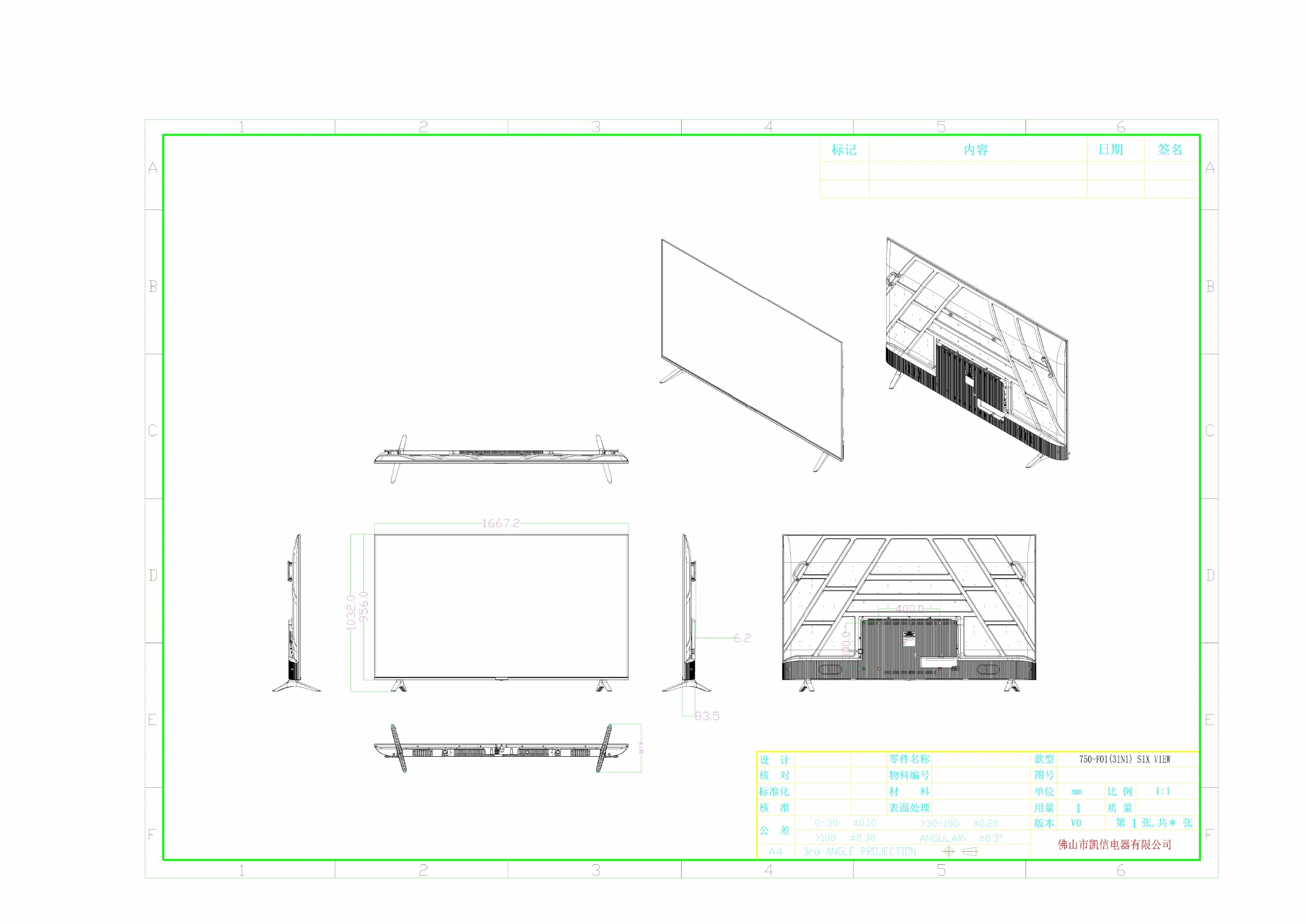

750-F01 3IN1 · Plastic Variant · Plastic-variant six-view drawing
Explore model views →
Front Angle

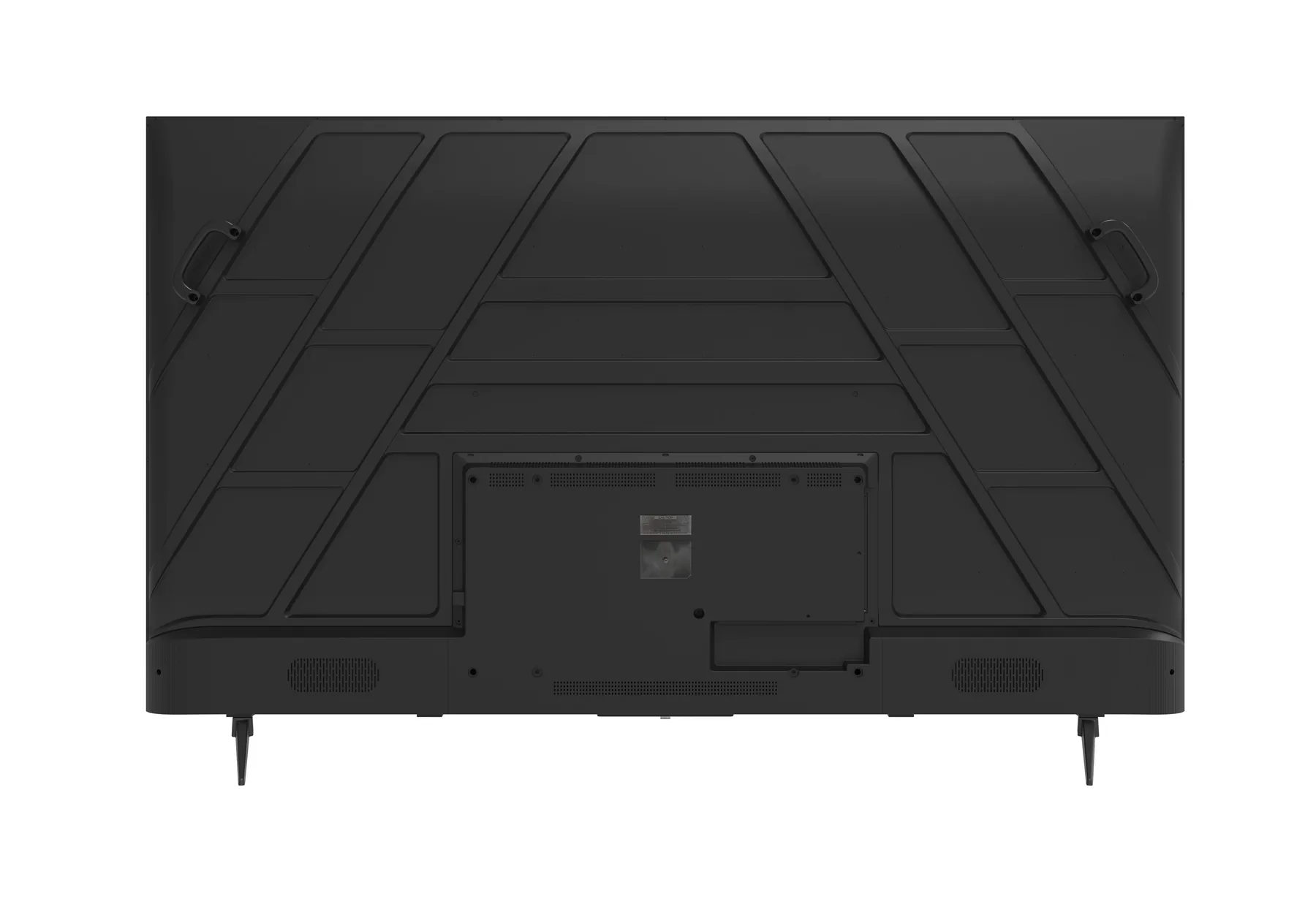

LY750-F01 3IN1 · Cast-iron V-style feet
Explore model views →
Front Angle
LY850-F01 · Cast-iron V-style feet and metal lower trim
Explore model views →Material reference
SGCC sheet thickness.
Values below are transcribed only for exact model labels in the supplied back-plate thickness worksheet. Final material, dimensions and finish must be confirmed against the approved drawing.
| Worksheet model | SGCC thickness |
|---|---|
| 55F01 | 0.45 mm |
| 65F01 | 0.50 mm |
| 75F01 | 0.55 mm |
| 85F01 | 0.60 mm |
Match F01 55/65/75/85 Series to your program.
Send your target size, back-plate drawing or sample requirements. Our team can confirm model fit, material, tooling and production route.
