F01 55/65/75/85 Series / Model views
LY850-F01
Cast-iron V-style feet and metal lower trim

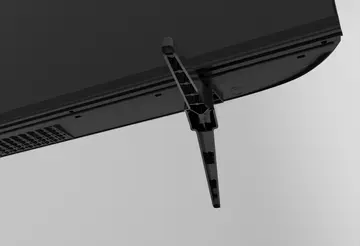

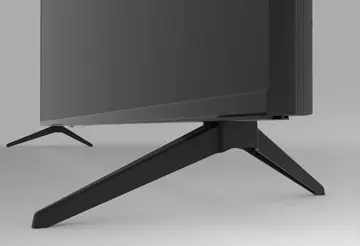

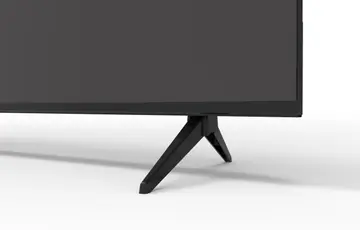

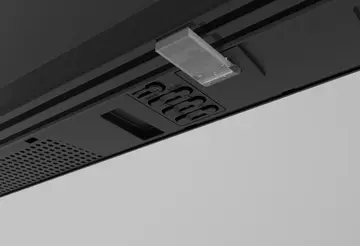

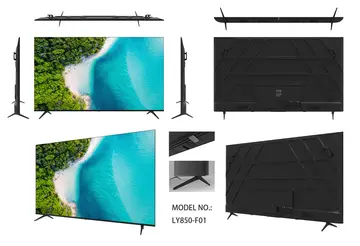

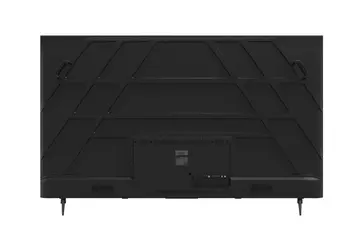

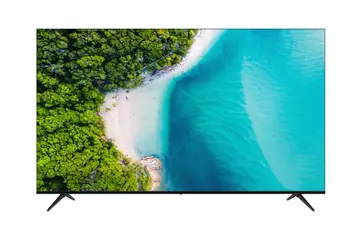

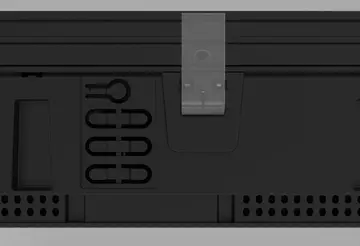

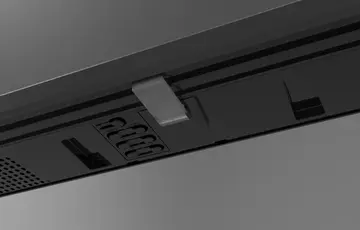

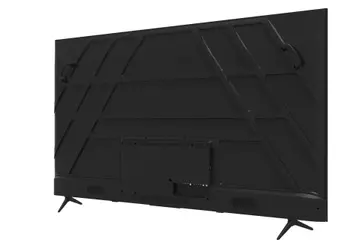

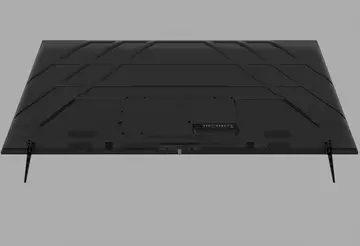

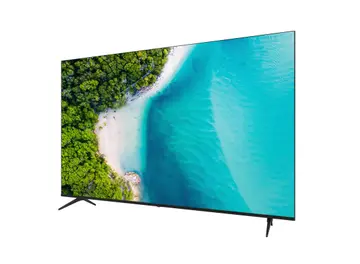

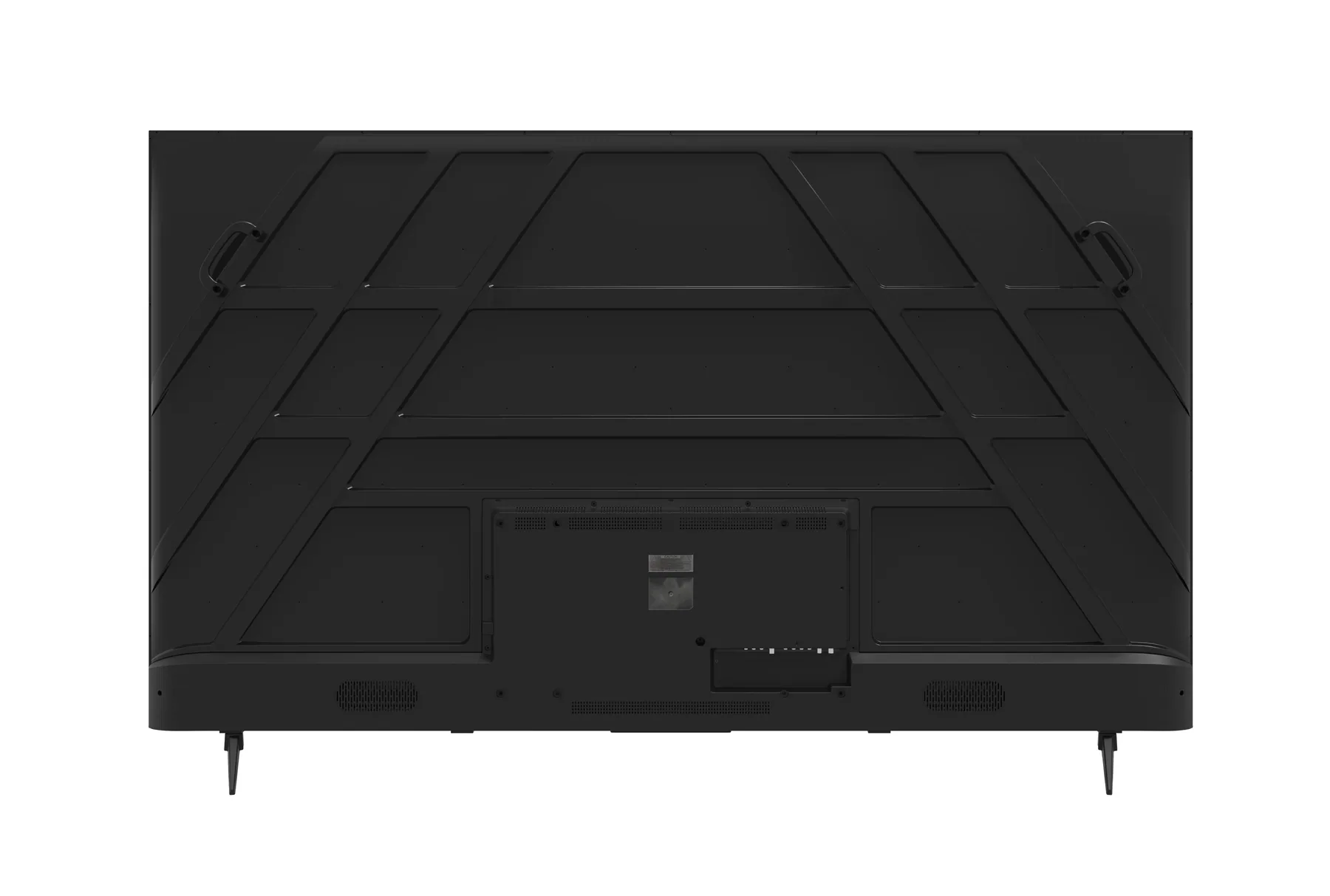

Explore the supplied views of this Supplied configuration configuration. Use the available angles and details to discuss structure and fit with our team.
These supplied visual renderings show an assembled TV configuration. They are visual references for this named variant, not standalone photographs of a bare SGCC metal back plate. Final structure, material and dimensions require drawing-based confirmation.
- Model reference
- LY850-F01
- Configuration
- Supplied configuration
- Variant / reference
- Cast-iron V-style feet and metal lower trim
- Supplied views
- 12
Engineering confirmation
Match the visual reference to your drawing.
This page does not assign a model-specific SGCC thickness or dimensional specification from imagery alone. Send the approved drawing or target requirements so our team can confirm the exact back-plate construction.
Match LY850-F01 to your program.
Share your target size, structural drawing or sample requirement for an exact model and material review.
